Cardan shaft manufacturing
For all types of vehicles and special equipment
High-quality cardan shaft manufacturing
We manufacture cardan shafts according to individual orders or in cases where the cardan cannot be repaired.
1-year warranty
Use of original parts
Fast and high-quality service
Experienced specialists
Submit a request for the manufacturing of a new cardan shaft
Fill out the application form so that we can evaluate the cost and time frame of the work. We will contact you to validate our offer.
At Auto Cardan, we produce cardan shafts to the highest standards using the latest technology and original parts. This ensures maximum torque transfer and safety throughout the cardan’s lifespan.
Specification and sketches
Before manufacturing begins, our team meticulously creates detailed sketches and specifications for the cardan shaft, ensuring precision and alignment with requirements. This careful planning sets the stage for the production process, where high-quality materials and advanced techniques are used to manufacture reliable and durable cardan shafts.
Tube fitting and processing
To ensure the highest safety and longevity of the cardan shafts, we use seamless tubes. Our specialists fit the tube according to the specified parameters. The tube ends are machined at a specific angle to create a welding seam. The tube ends are then heated and pressed together with the assembled cardan parts.
Welding
To prevent the cardan shaft from twisting during welding, spot welding is performed at four points. The welding nozzle is positioned at the correct angle relative to the cardan’s axis, and the welding parameters—current strength, voltage, and cardan rotation speed—are set. To ensure a precise weld seam joint, a specific section of the flange is welded twice.
Alignment
After welding, the cardan is cooled and moved to an alignment press, where its geometry is checked. If any deformation is detected, it is corrected to the minimum possible level.
Balancing
The aligned cardan is placed in a balancing stand, where precise parameters are selected to balance the cardan. If necessary, weights are welded onto the specified points by the balancing equipment, ensuring the stability of the cardan shaft.

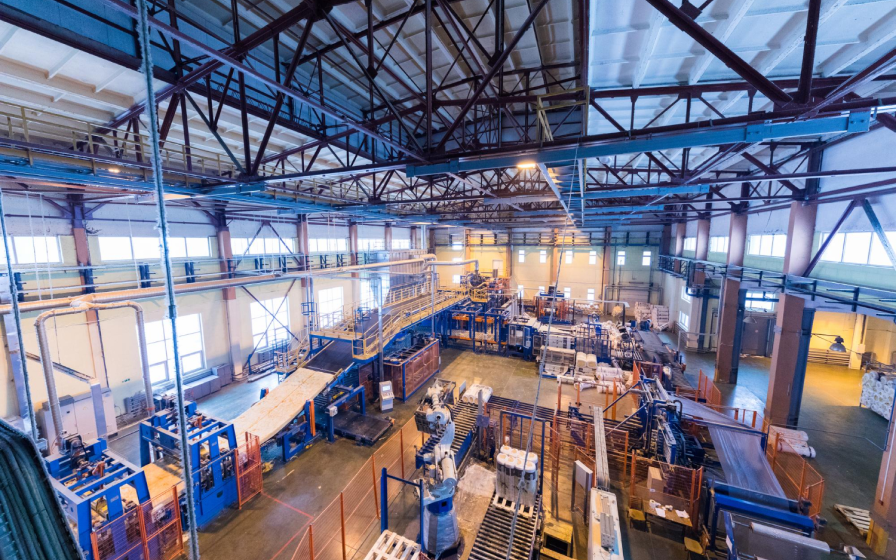

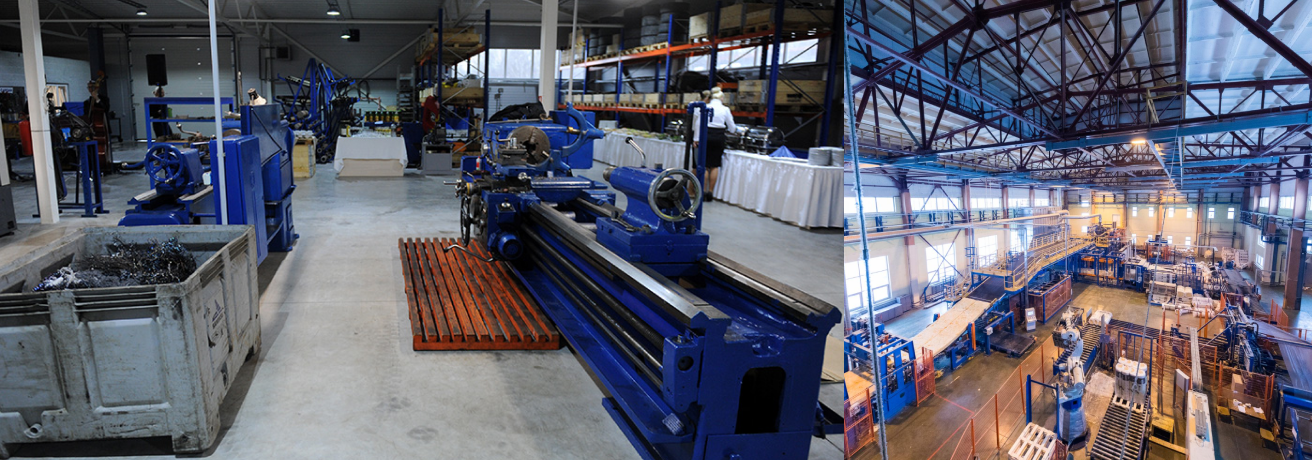

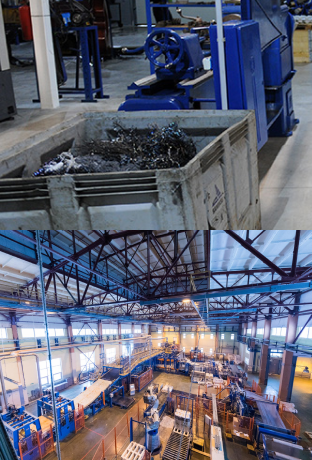

Cardan shaft manufacturing facility in Latvia
Auto Cardan provides cardan shaft manufacturing for all types of vehicles and special equipment in Latvia, Lithuania, Estonia, and Finland. For orders from Latvia and Lithuania, manufacturing is handled by Auto Cardan in Latvia.
